AC300D4 Series Controllers are meritsafer’s benchmark for access control, input & output control monitoring. System configuration begins with Embedded Multi-Tasking RTOS(Real Time Operating System), Guard with hardware and software design, once the voltage is abnormal or software, the system will automatically and quickly restore. Unattended station will be realized. RS485 and TCP / IP hybrid network, providing customers with more choices
Each system configuration provides 100% Distributed Intelligence. Meritsafer guarantees complete integrity of the security features even during a loss of communication to the host. All pertinent data necessary to make card access decisions and input/output decisions are stored in the controller and saved in the battery backed up memory for over ten year. Basic card authorization is based on reader, time of day, day of week and holiday control
Capacities
Ø 8 Reader Configurations
Ø Max slave controller 15
Ø Max Master Controller at the same network segment 254
Ø 20,000 to 250,000 Cardholders
Ø 88,000 to 500,000 History Transactions
Ø 15 Group X 7 Day X 8 Time Period
Ø 15 Group X 100 Day X 4 Holiday Time Period
Ø 10 Yr. Battery Backed Clock Calendar and Memory by Data Flash Optional Universal Power Supply (90-250V AC)
Features
Ø 32 Bit ARM Processor, Multi-Mask Linux System,
Ø Real-time Diagnostics
Ø Guard with hardware and software design; Unattended Realized
Ø Electronic Firmware Updates (Flash Memory)
Ø Support RS485 and TCP / IP hybrid network
Ø Support Whole Network Clock Calibration
Ø User Programmable Input/Output Logic
Ø User Specified Supervised or Digital Sense Input Definition
Ø High Security 5 State Alarm Supervision
Ø Support Card / Password / Card + PIN / Multi-Card / PIN (8 Byte) / Public password / Duress code
Ø Two Person Minimum Occupancy Rule (TPMOR)
Ø Full Anti-Pass back and Part Anti-Pass back
Ø Distinguish In/out
Ø Multi-Door Interlock -RS485/232, 10/100M TCP/IP Communication Adaptive
Key feature
Ø Access controller is based on 32-bit ARM microprocessor platform
Ø Access controller built-in embedded real-time multitasking operating system
Ø Adopt data flash and ferroelectric memory, keep data for less than 10 years when power-down
Ø Capacity of card of controller up to 20,000, the event capacity of 100 000, maximum cards 250,000, Events 500,000.
Ø Support two kinds of communication of TCP/IP and RS485, can freely set and switch

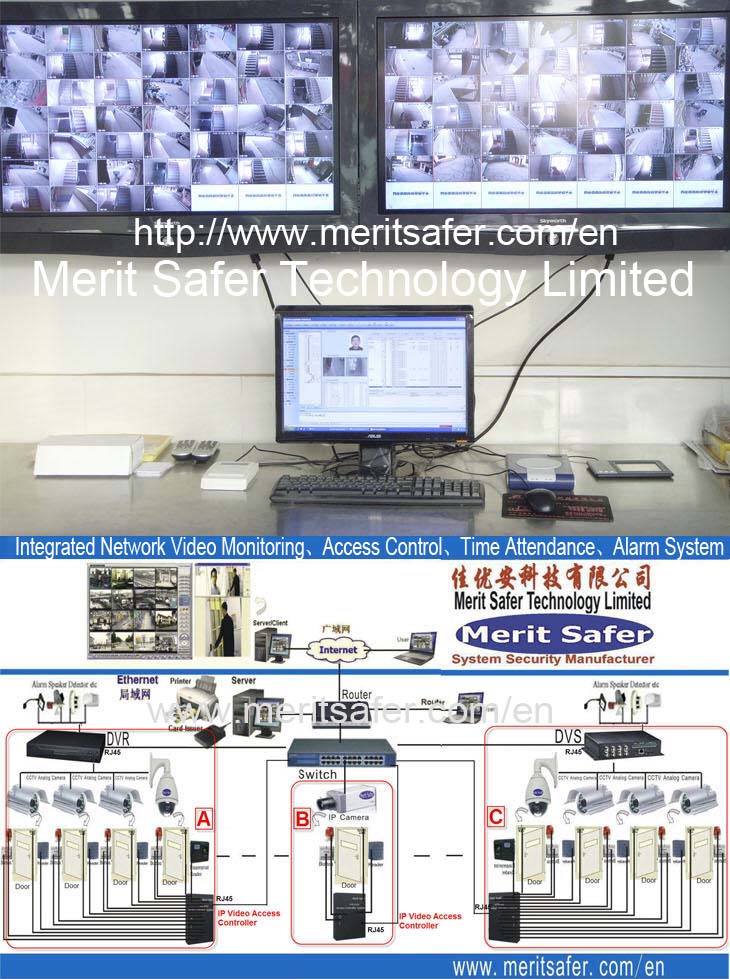

Ø Total support TCP/IP and RS485 mixed networking, Mixed easily cascade multiple
Ø Support the connection of different types of readers: ID / IC card reader, password & card readers, biometric readers, etc.
Ø Open door mode: Card; card + password; super password; dual card; the first card; threatening code; emergency fully open fully closed; force open and closed normally closed door etc
Ø Can achieve fully control of independent 4 channel gate: includes access of 4 door bidirectional
Ø Can be achieved for all staff to control access time
Ø Real-time monitoring users access to information and door status
Ø Multi-level digital E-maps, real-time dynamic monitoring of the system access state
Ø Support two, three, over four door interlock functions
Ø Support the reunification of the whole network clock calibration
Ø Support remote download, remote upgrade
Technology specs
Communication way
Ø communication port
10/100M adaptive Ethernet interfaces, automatically adapt to direct and cross network cable, RS485 interface, with three lightning protection, anti-surge design
Ø Protocol
TCP/IP protocol, serial communication protocol, the serial communication baud rate: 9600
Ø Transmission distance
TCP / IP: 100 meters (100 meters is the standard twisted-pair distance, the measured rate of 10M, up to 300 meters) RS485: 1200 meters (the standard distance of 4000 feet); RS232: 15M (the standard distance of 50 feet)
The underlying software of controller
Ø Embedded real-time multitasking operating system
Ø The system will automatically and fast recovery when software and voltage is abnormal, due to guardian with hardware and software design
Ø Support offline operation
Ø Allows online upgrades or remote upgrades
Ø The number of Sub-controller when adopt TCP/IP communication: 15 units
Ø Support across gateways, inter-network segment, the maximum of access controller is 250 units at the same network segment
Ø Weekly program:15 group; 7 days; 8 hours
Ø Holiday Programming:15 groups; 100 days; 2 hours
Ø Open schedule: 1 Group; 7 days; 8 hours
Ø Control(Regulation) schedule:1 Group; 7 days; 8 hours
Memory
Ø Card users: 20,000 (standard), expandable to 250,000 users
Ø Event Log: 88,000 (standard), expandable to 500,000, if the memory is full, the oldest information will be overwritten
Ø Power data retention: 10 years, keep the user record and data by the way of ferroelectric and Data Flash
Electrical specs
Ø Power Input of controller: 12VDC
Ø Special 5A power for Access control: 110~260VAC; 50/60HZ, can power for electronic locks, with automatic switch function between backup battery and charge
Ø Backup battery: 12V/7AH Lead-acid battery (optional)
Ø Operating Current: <150mA (Note: no power locks and reader current)
Ø Communication ports: TCP / IP or RS485
Ø Card Reader Ports: 4-way, to support bi-directional Wiegand 26 / 34 Card Reader
Ø Relay Output: Omron Relay DC30V/5A, 250VAC/5A
Ø Relay delay: Lock relay can be set among 1-255 seconds, other relays can be set 1-65535 seconds
Ø Interface protection: All input and output interfaces are over-current voltage protection, communication port and power port how lightning protection level
Ø Door lock output: 4 channel, the relay capacity 30VDC 5A, relays delay can be set among 1-255 seconds
Ø Users Alarm output: 4 channel, the relay capacity 30VDC 5A, relays delay can be set among 1-65535 seconds
Ø Magnetic Alarm output: 1 channel, the relay capacity 30VDC 5A, relays delay can be set among 1-65535 seconds
Ø Threatening alarm output: 1 channel, the relay capacity 30VDC 5A, relays delay can be set among 1-65535 seconds
Ø Magnetic Input: 4 channel, normally open and closed can be set, and the controllers work with an ordinary network cable then transmission distance≤200meters
Ø Exit switch and button input: 4 channel, normally open and closed can be set, and the controllers work with an ordinary network cable then transmission distance≤200meters
Ø Users Alarm input: 4 channel, normally open and closed can be set, and the controllers work with an ordinary network cable then transmission distance≤200meters
Ø Door fully open Input: 1 channel, closed effective, Electronic locks fully open, and the controllers work with an ordinary network cable then transmission distance≤200meters
Ø Door fully closed Input: 1 channel, closed effective, Electronic locks fully closed, and the controllers work with an ordinary network cable then transmission distance≤200meters
Performance parameters
Ø Card Speed: <0.2 seconds, support 4PCS card reader as well slot card
Ø Slot card interval: <0.5 seconds
Ø Internet Download Card:> 200pcs/sec, the time is less than 100s when download 20,000 cards
Ø Web upload records:> 350/sec, the time is less than 330s when upload 100,000 record
Ø Support the reader types: IC, ID, password, biometrics, etc.
Reader Technology supported
Ø Wiegand 26-44
Ø HID Reader
Ø Keypad
Ø Biometric
Ø CPU Reader
Ø RS485 Reader (Optional)
physical parameter
Ø Box size:370mm(L)x260mm(W)x85mm(H)
Ø PCB size:200mm×160 mm
Ø Operation temperature:-20℃—65℃
Ø Related humidity:0—90%No condensation
Ø G/W:4.2Kg
Cargo Packing
SW Interface
